01 / SEEDS

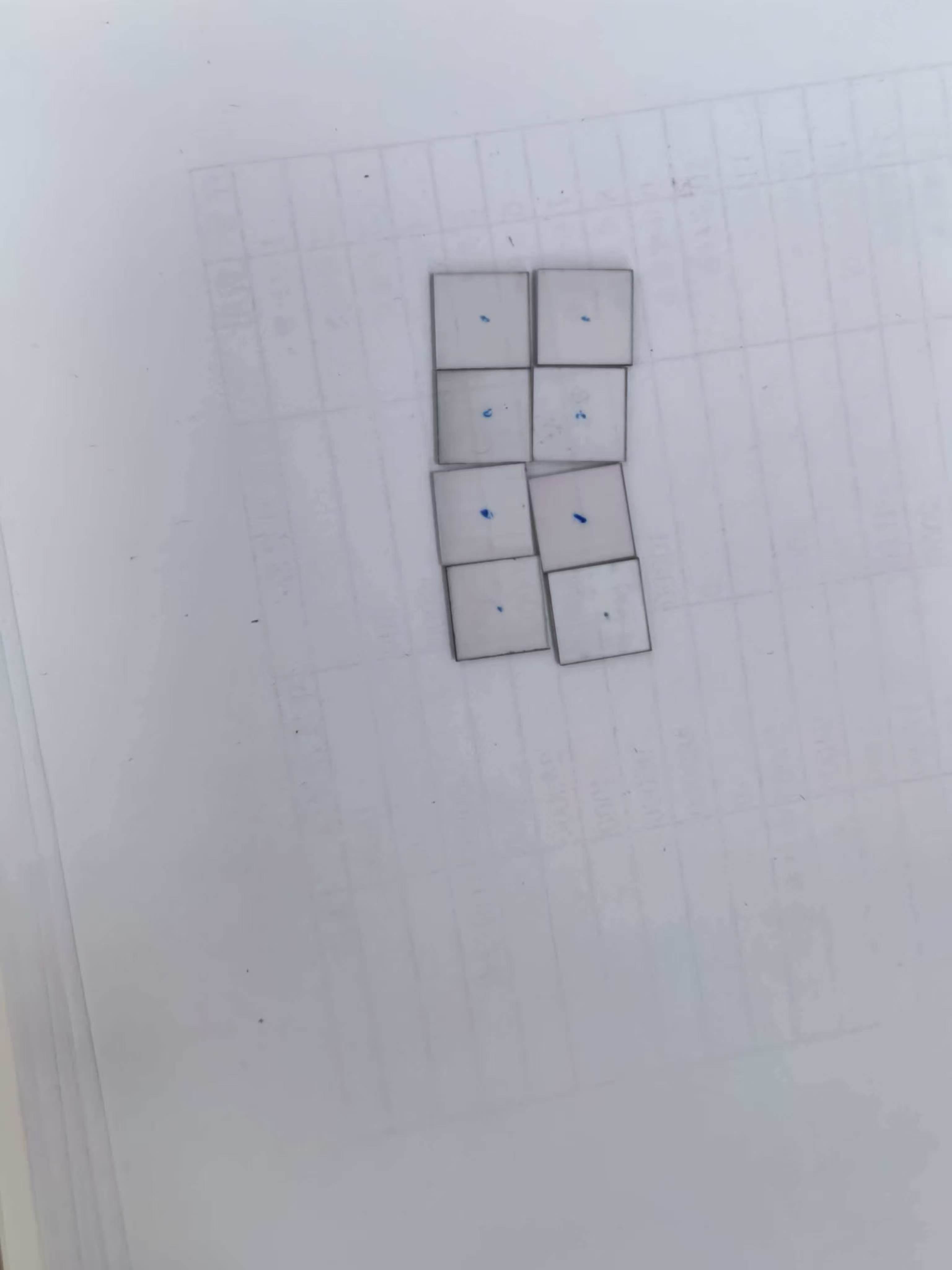

Single-Crystal CVD Diamond Seeds for MPCVD Growth
Supplier-listed CVD single-crystal seeds with a stated (100) face and 0.5–0.8 mm thickness. Stock is reported available, with small-batch inquiries welcome.
Specifications
Listed size options
| Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 10 | 10 | 0.5–0.8 |
| 12 | 12 | 0.5–0.8 |
| 14 | 14 | 0.5–0.8 |
| 12.8 | 8.8 | 0.5–0.8 |
| 15.5 | 11 | 0.5–0.8 |
Other dimensions can also be requested; availability, quantity and price are confirmed per inquiry.
| Material | CVD single-crystal diamond seed (supplier description) |
|---|---|
| Main face | (100), as stated by supplier |
| Size | See listed size options; other sizes by inquiry |
| Thickness | 0.5–0.8 mm |
| Availability | Stock reported available; confirm per inquiry |
Listed dimensions and performance values reflect current supplier information and should be confirmed for the selected batch.
Not sure which specification fits your application? Technical Support ↗
Applications
For MPCVD growth and research. Confirm that the stated face and dimensions suit your process before ordering.
